Works Specific Requirements (WSR)



From contract specific appendices to Works Specific Requirements

The old contract specific appendices in the Notes for Guidance have been replaced by Works Specific Requirements (WSR) derived from the specifier instructions contained in the main text of the Instructions for Specifiers (IfS) documents.

Back to top

List of WSRs

For each IfS document there is a WSR references section (see Figure 1), which lists all the WSRs referenced by the associated SHW document. All WSR templates for a given SHW document are provided in a single file for ease of use. National Highways maintain a backlog of future enhancements including aspects like providing a downloadable list of all WSRs across all documents and related titles, see also future enhancements.

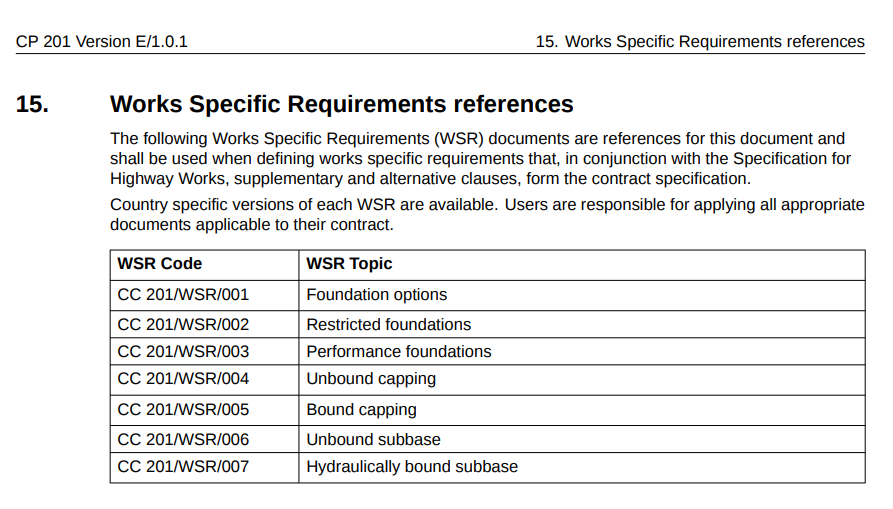

Figure 1: Example of WSR references section

Back to top

WSR templates

WSR templates are available in XML-based open-source files (.ods) on the Standards for Highways website (downloadable under the relevant Instructions for Specifier document, see how to download a WSR template) to give the specifier a clear, consistent, and complete format to support the development of a contract-specific specification, see Figure 1.

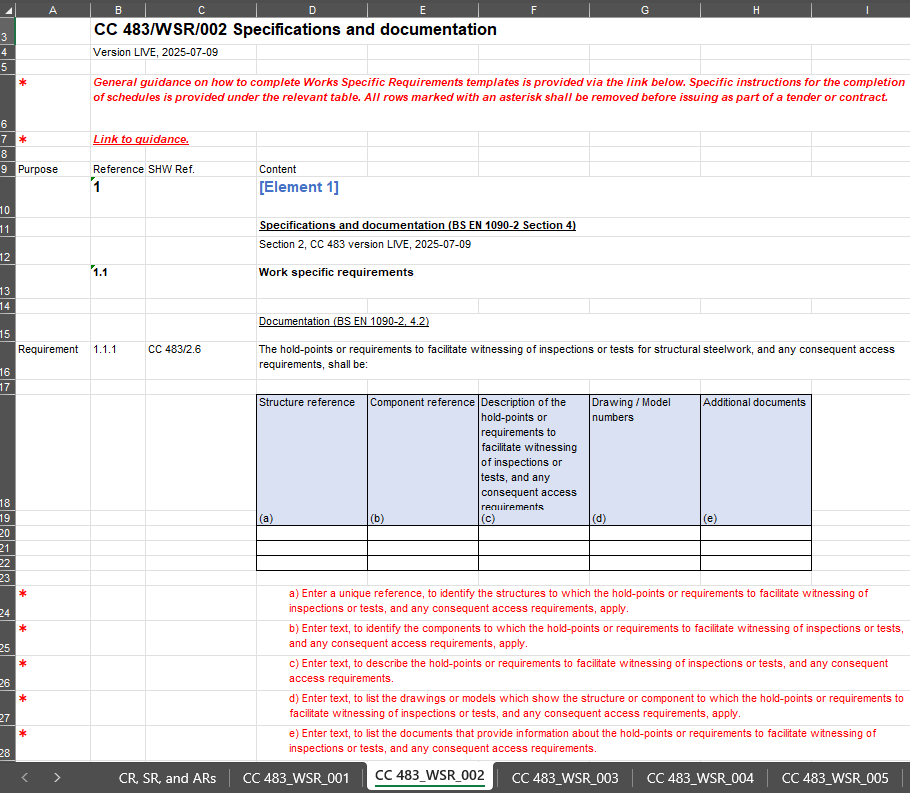

Screenshot of an example tab from a Works Specific Requirement template

Figure 1: Example of WSR template tab

Back to top

WSR grouping

Specifier instructions are logically grouped into individual tabs into the WSR templates. These are typically aligned to SHW sections, although a WSR template may encompass multiple SHW sections where it assists completion. There is no one-to-one mapping between individual SIs and WSR tabs: multiple SIs within a IfS section can contribute to the same WSR tab.

Back to top

WSR numbering system

WSR templates have references based on the SHW document code, e.g. CC 201/WSR/001 (see Figure 1, the tabs at the bottom of the page). The last three digits in the WSR codes may not always be consecutive so as to maintain alignment with the associated SHW document’s section.

Back to top

WSR content

The WSR templates contain all the individual specifier instructions to be completed alongside the reference to the associated SHW clause. The WSR template is also used to capture the relevant departures from the MCHW (Additional Requirements, Cancelled Requirements or Substitute Requirements) under a relevant tab, see Departures.

Back to top

WSR country-specific versions

Country specific WSR templates are provided for each Instruction for Specifier (IfS) document. Users are responsible for selecting and applying all documents appropriate to their contract.
